SPECIFICATIONS

Brand Name: TCHD Video

Electrified: No

High-concerned chemical: none

Input Interface: HDMI

Model: TC-UV08

Number Of Channels: 8-Channel

Origin: Mainland China

Output Interface: USB

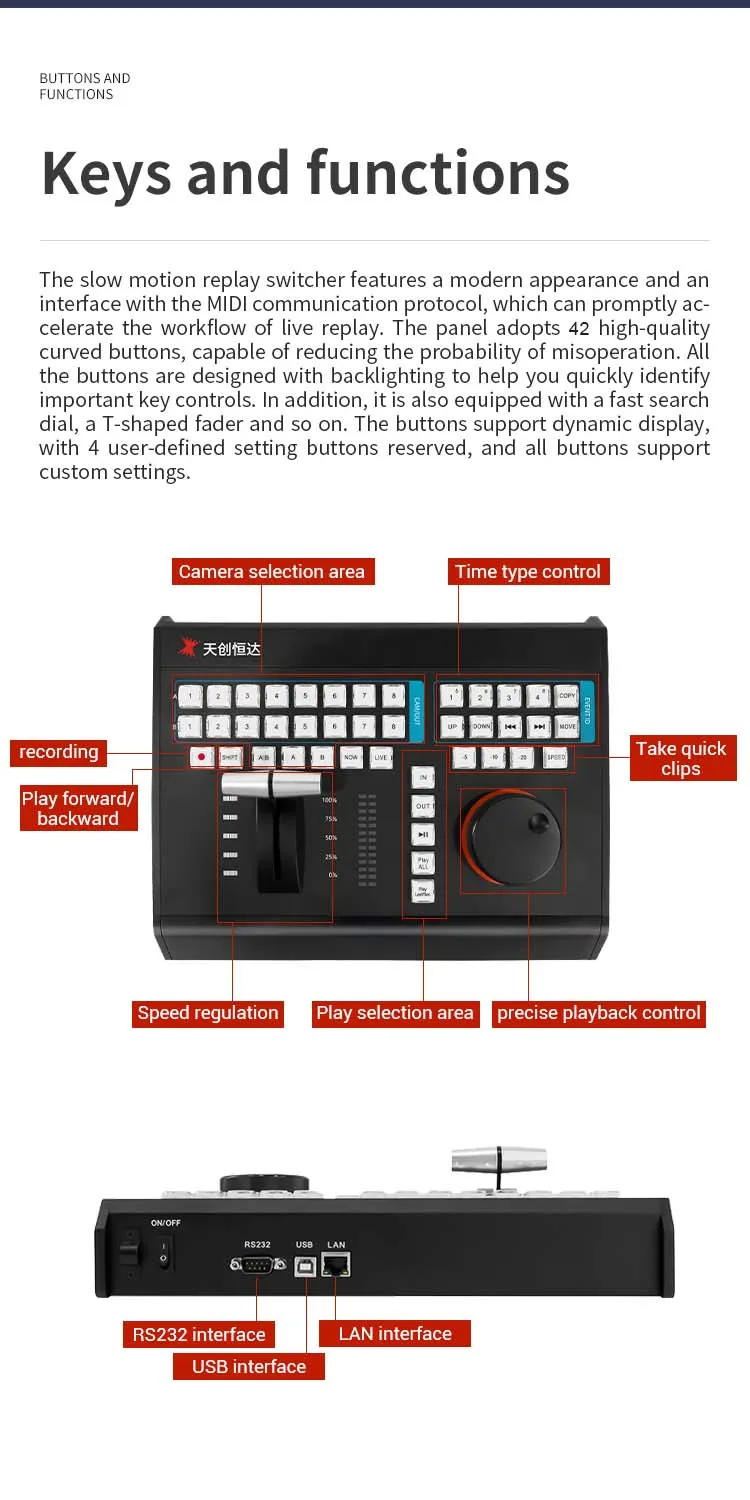

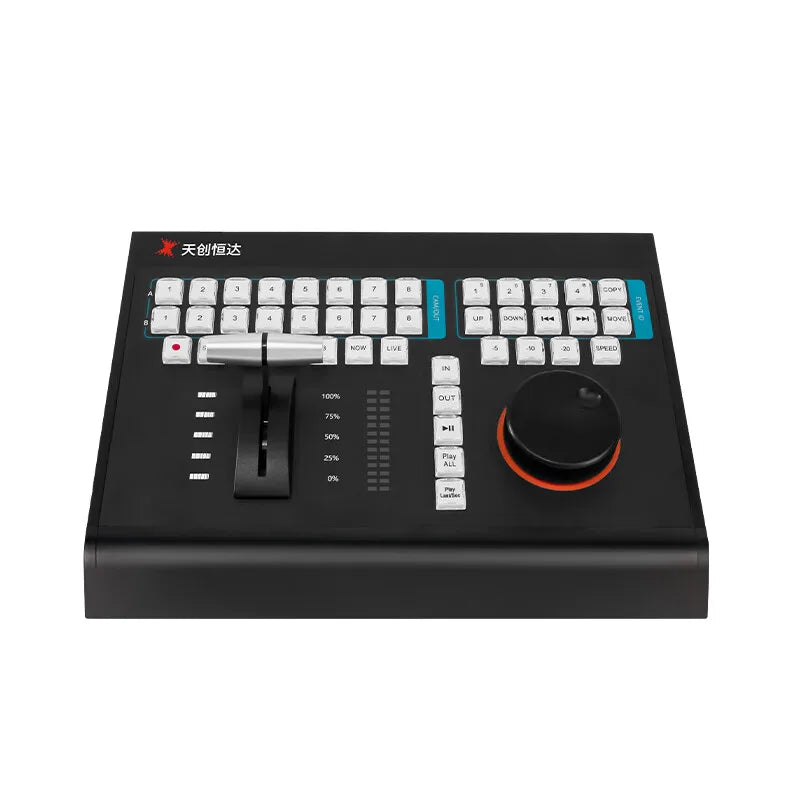

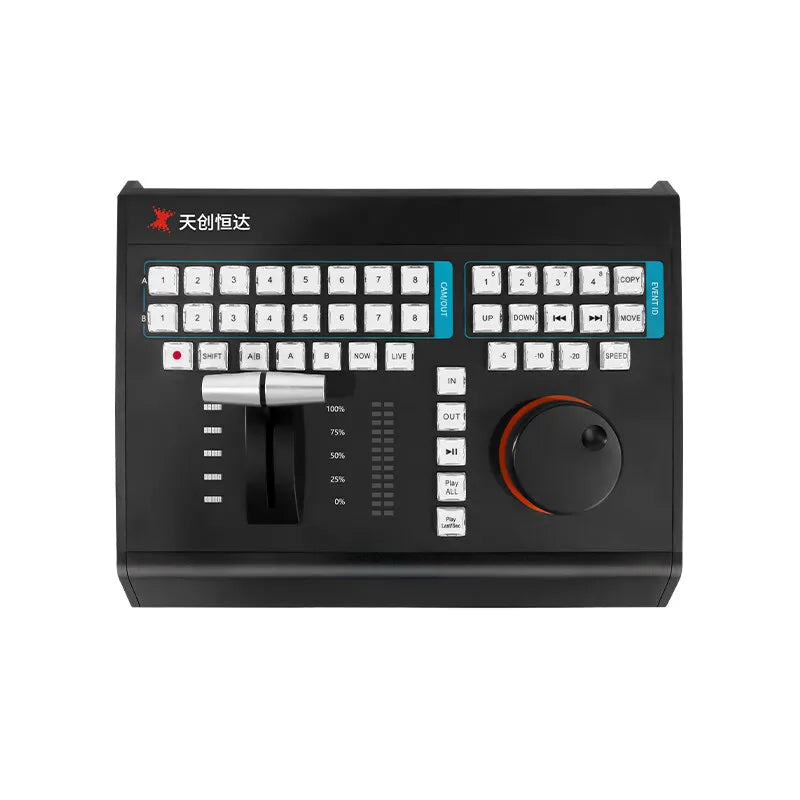

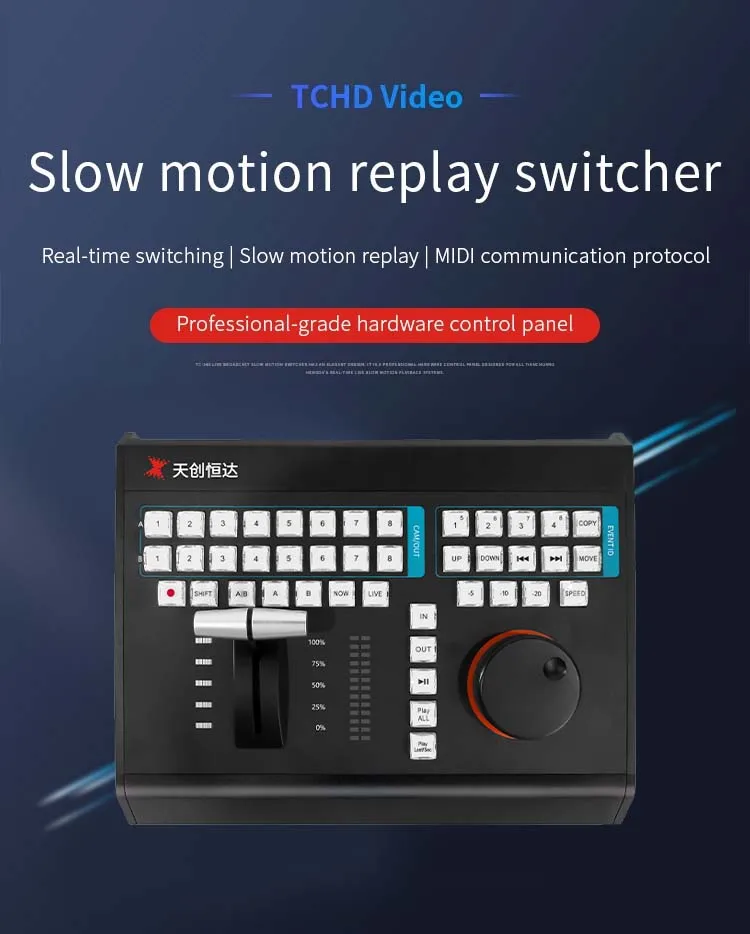

42-way dual-color crystal transparent buttons;

Broadcast-grade multi-channel A and B camera position switching;

Shortcut keys for multiple operations of current events on 8 channels;

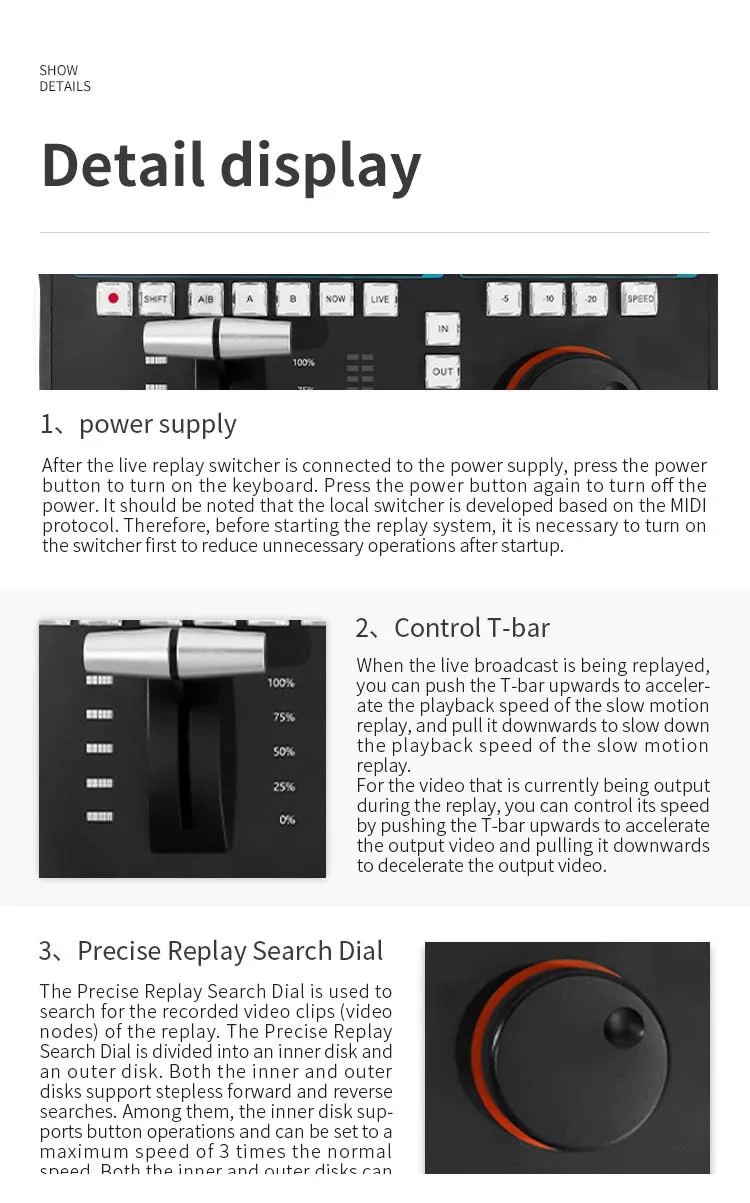

Streamlined professional T-shaped director switching control handle;

Third-generation damping video content search knob design;

Prefabricated Now, -5 seconds, -10 seconds, -20 seconds quick marking buttons;

A SHIFT mode switch button, as well as NOW and LIVE shortcut control buttons, are reserved;

The freely adjustable T-Bar allows precise control over video playback speed and duration;

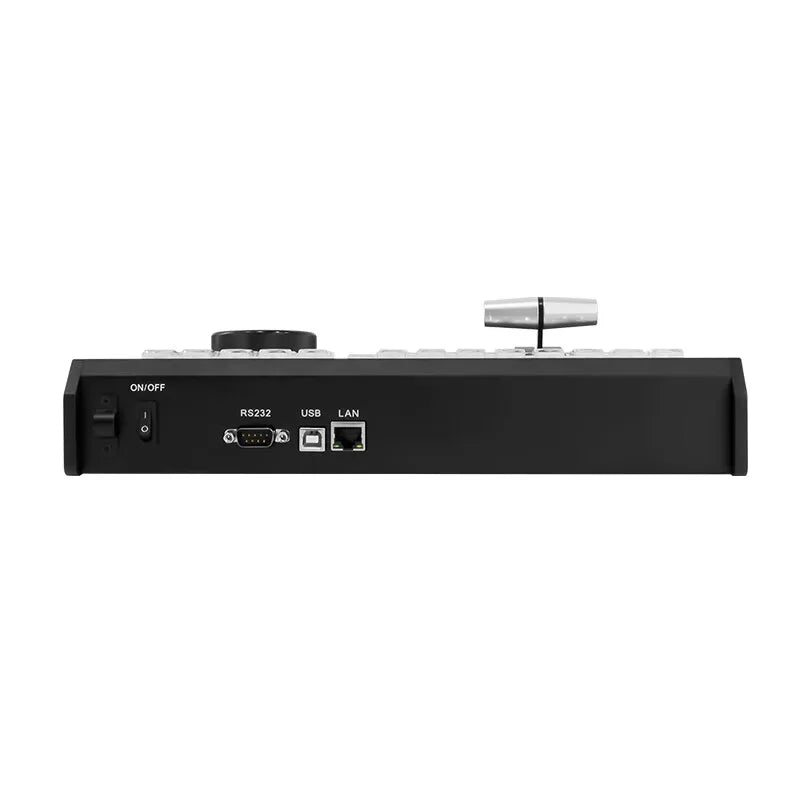

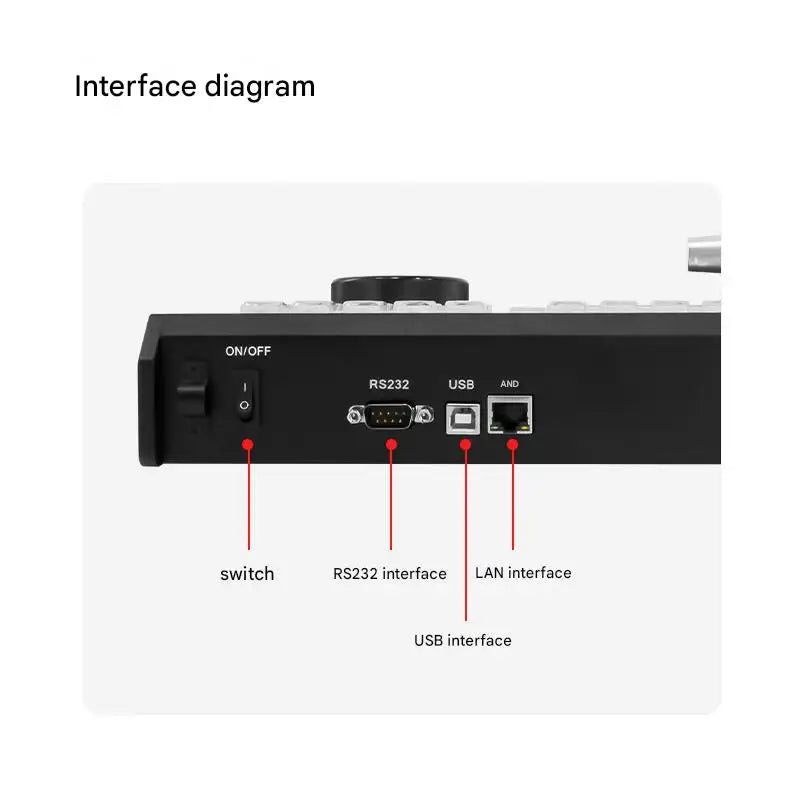

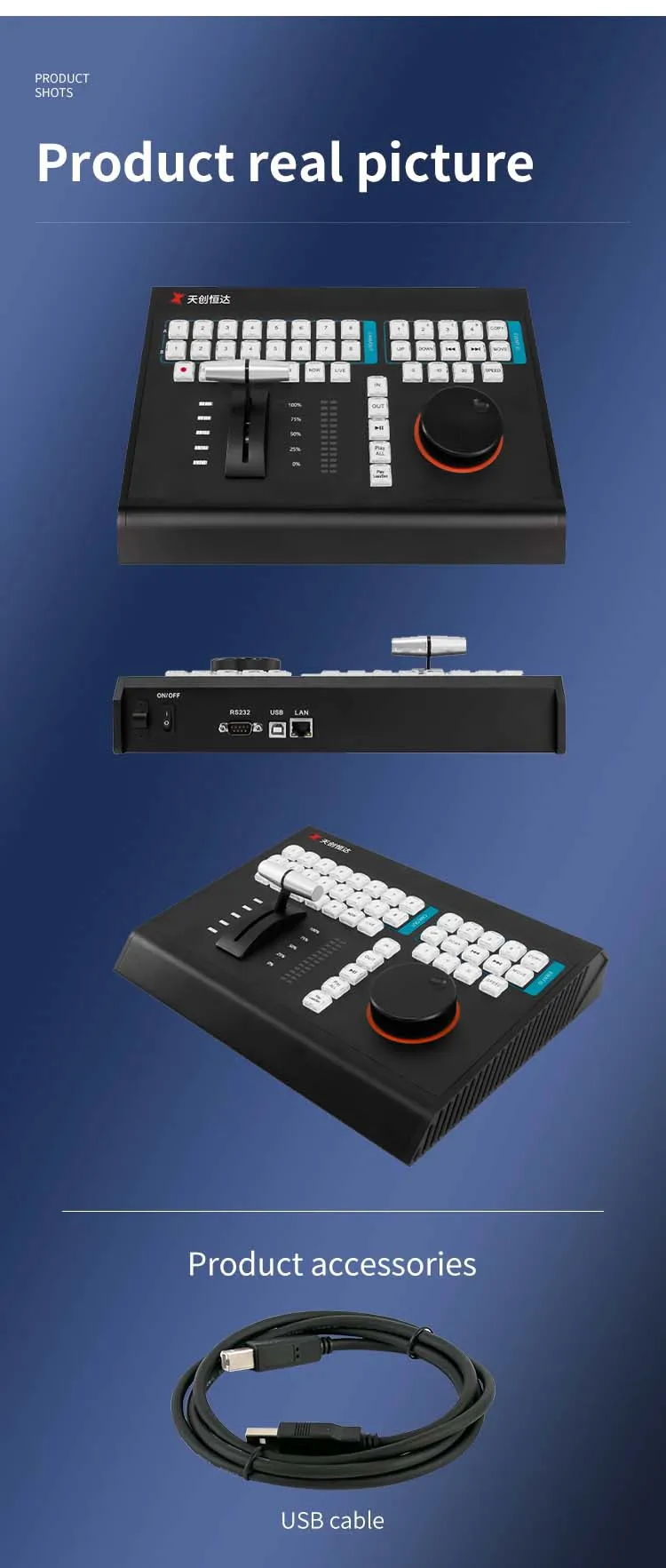

Reserved control signal communication interfaces such as LAN, USB, and RS232;

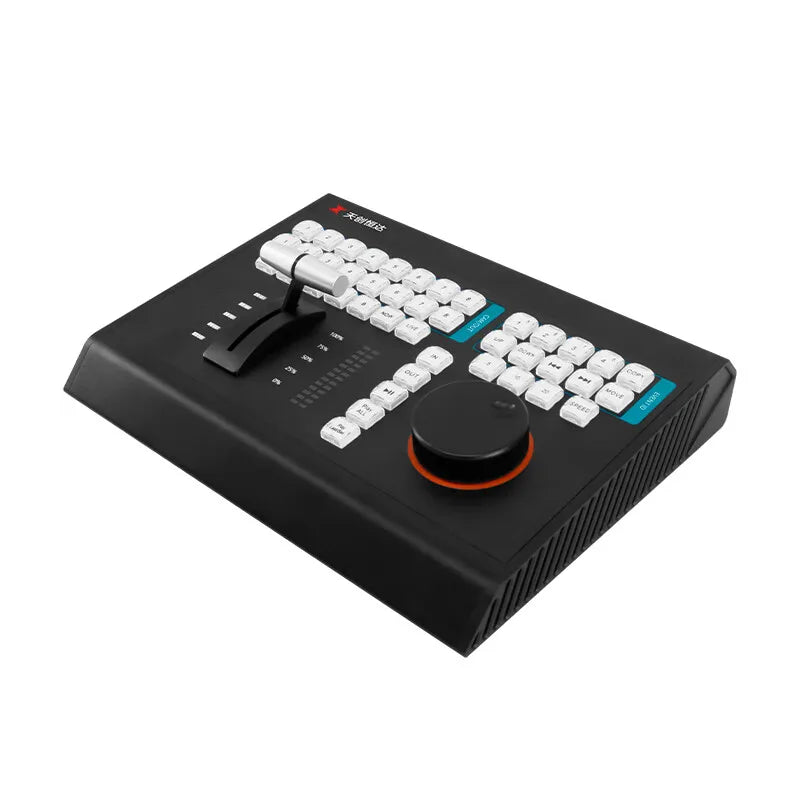

USB integrated communication and power supply design, aluminum alloy CNC craft housing

Product size: 310*245*90mm

Product quality: 2.5KG

Material: Aluminum alloy

Power input type: USB 5V

Rated current: 0.15A

Supporting software: Any software compatible with MIDI communication is acceptable

Operating temperature: -25°C to 60°C

Operating humidity: Less than 90%

Rated power: Maximum power consumption 1W
