SPECIFICATIONS

Aspect Ratio: 16:9

Brand Name: FEELWORLD

Brightness: 1200nits

Certification: CE,FCC,RoHS

Contrast: 1000:1

Display Colors: 16.7M (8 bit)

Display Size: 6"

HDMI Support Format: 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF),4K UHD 3840×2160p (30/29.97/25/24/23.98),1080i (60/59.94/50),720p (60/59.94/50/30/29/25/24/23.98),Supports up to 4096x2160/60p, 3840x2160/60p

High-concerned chemical: none

Inbox adaptor: No

Input: HDMI 2.0, DC IN 12V, 5V Type-C

Input Voltage: DC7-24V

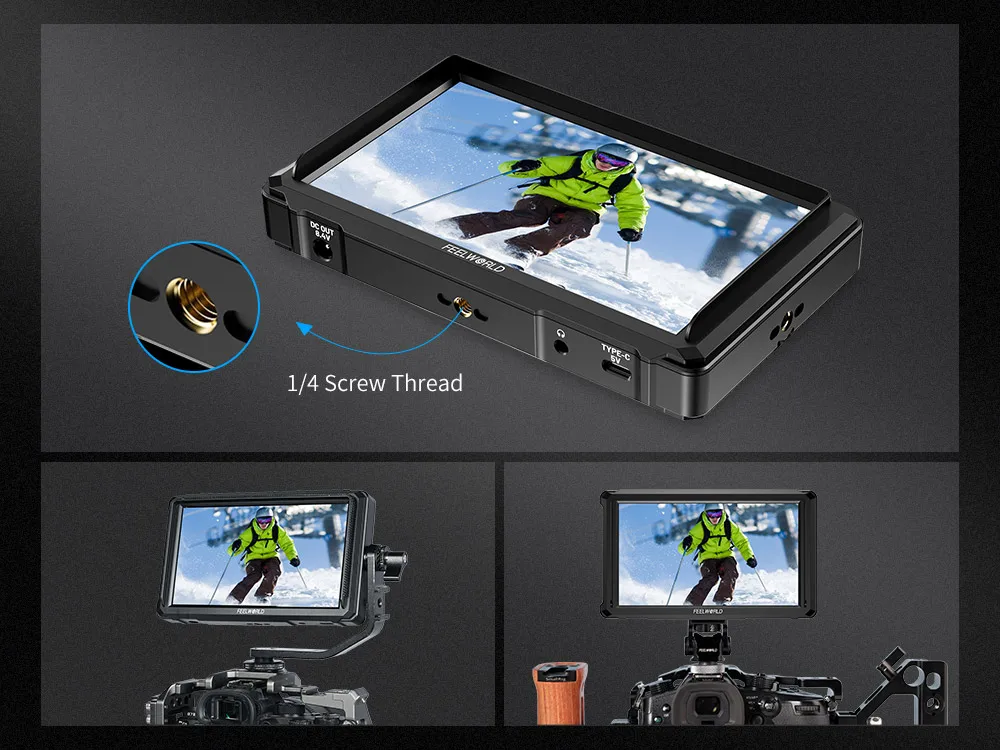

Install Way: Thread Socket (bottom, right)

Model Number: FW568 PRO

Origin: Mainland China

Output: HDMI 2.0, DC OUT 8.4V, 3.5mm Stereo Headphone

Plug Type: US Plug,UK Plug,AU Plug,EU Plug

Power Consumption: 11W

Power Source: DC,DC

Resolution: 1920x1080 pixels

Supporting Language: Japanese,French,German,Italian,Spanish,Portuguese,Russian,English,Korean,Dutch,Simplified Chinese,Traditional Chinese Style

Unit Size: 161x96x33.3 (mm)

Unit Weight: 204g

Viewing Angle: 160 deg

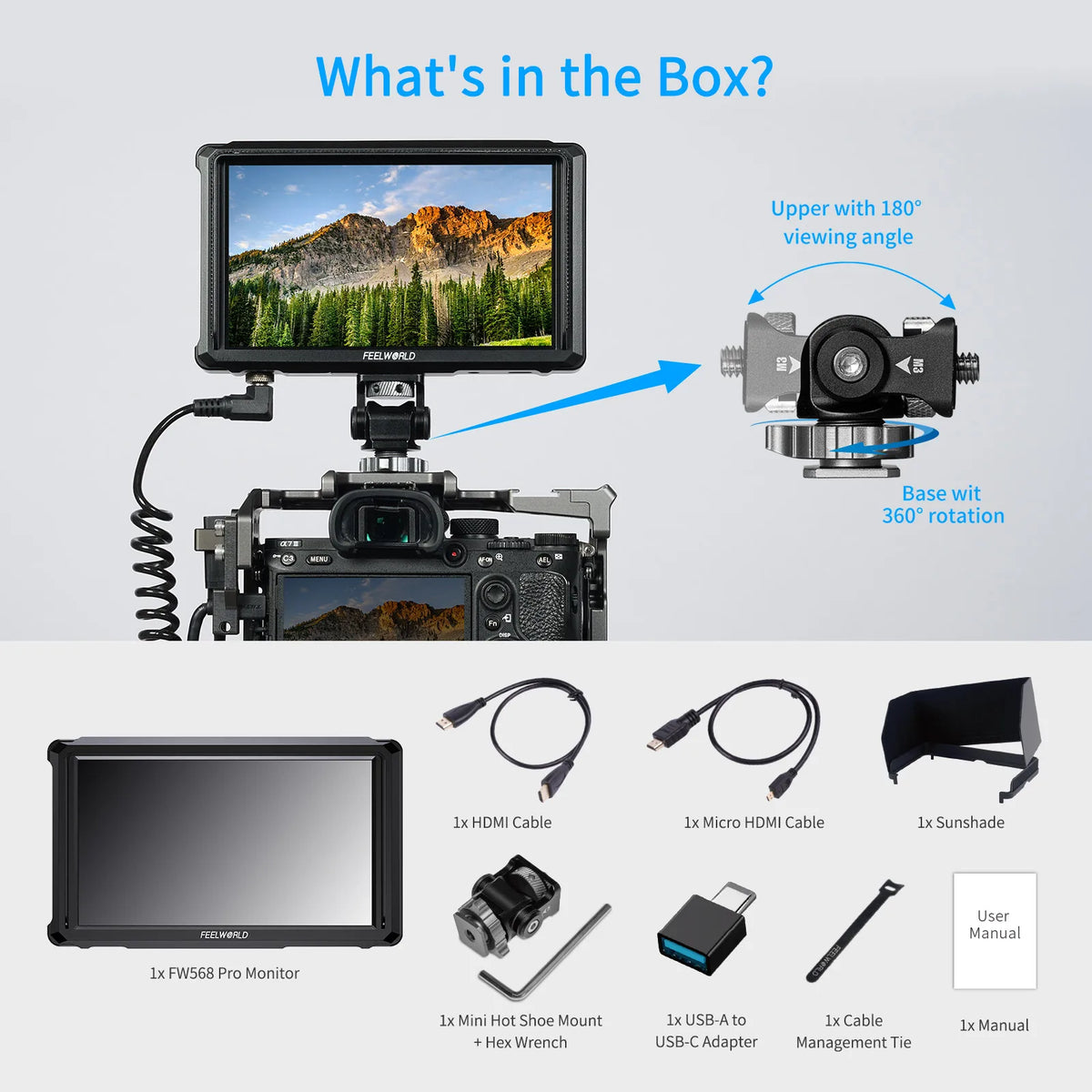

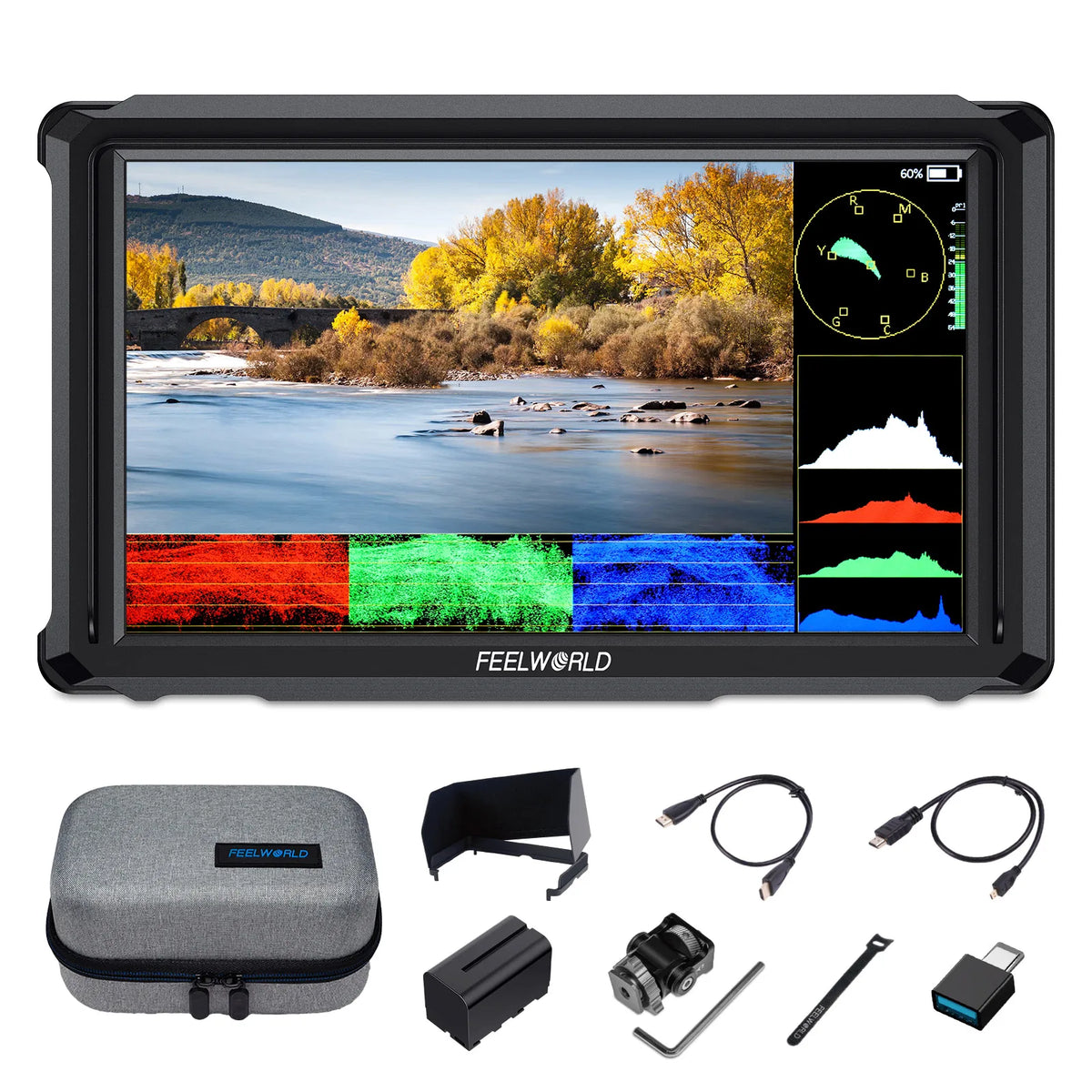

Standard Package Include

Note: FW568 PRO is not a touchscreen Monitor

Product Instruction

4K HDMI Input and Output

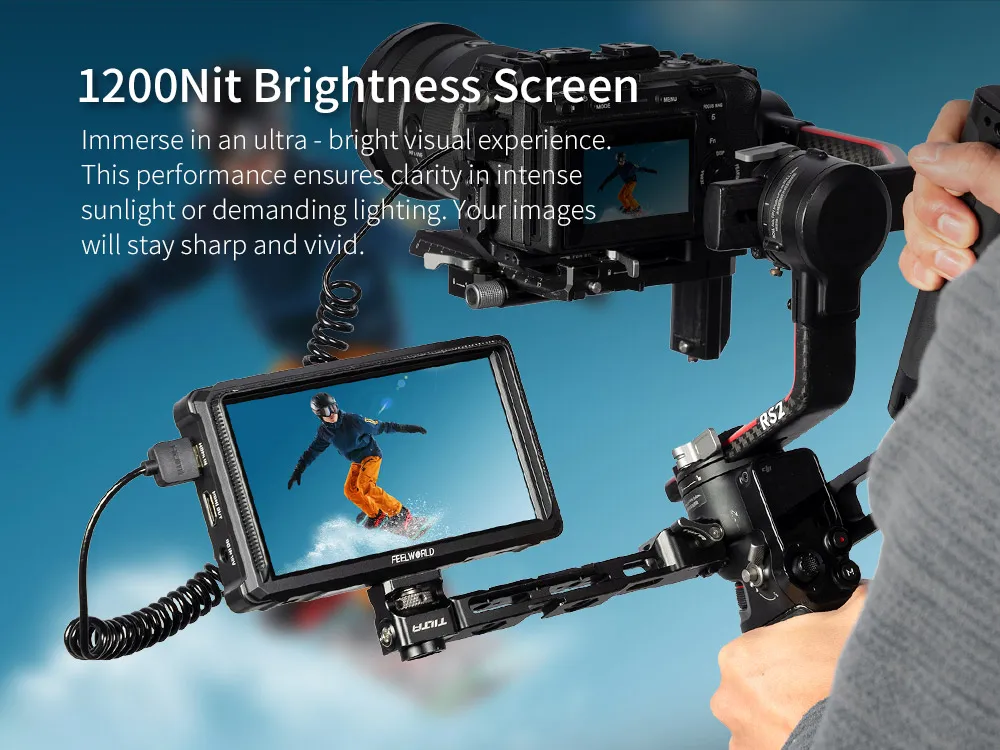

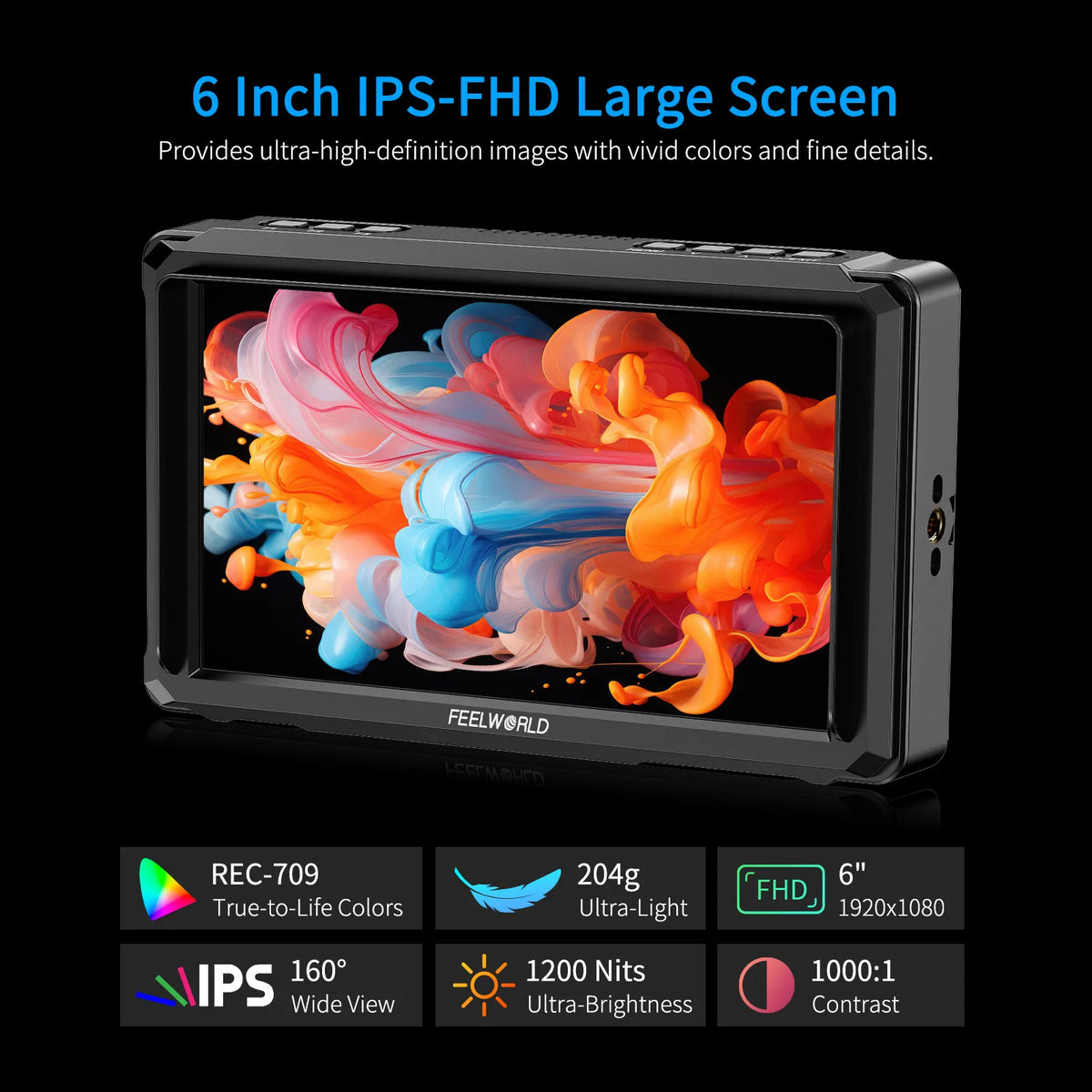

6-inch Full HD 1200nits Screen

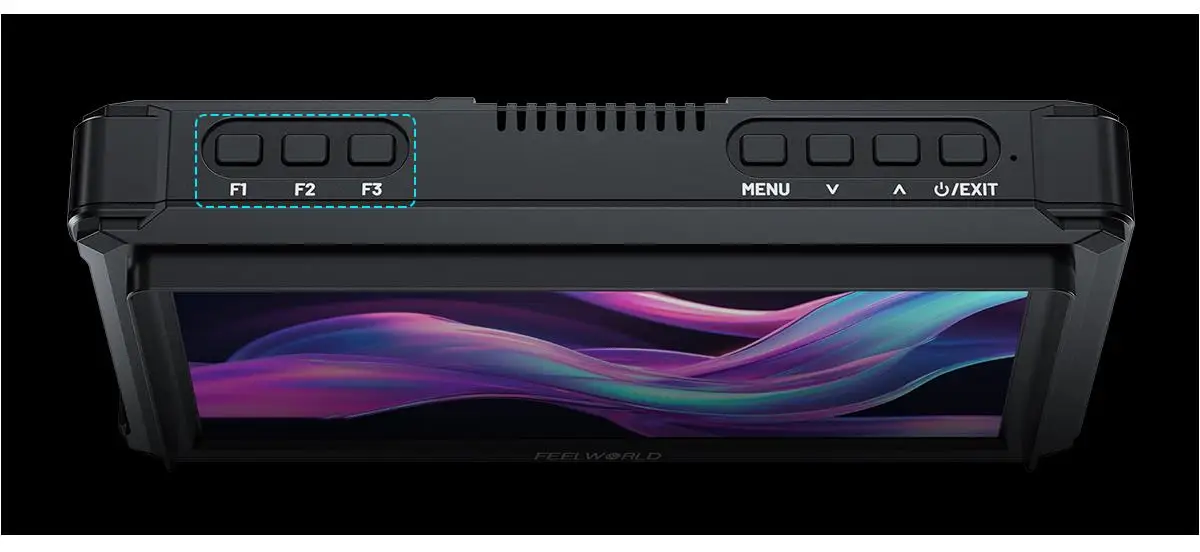

Button Operation, More Selection

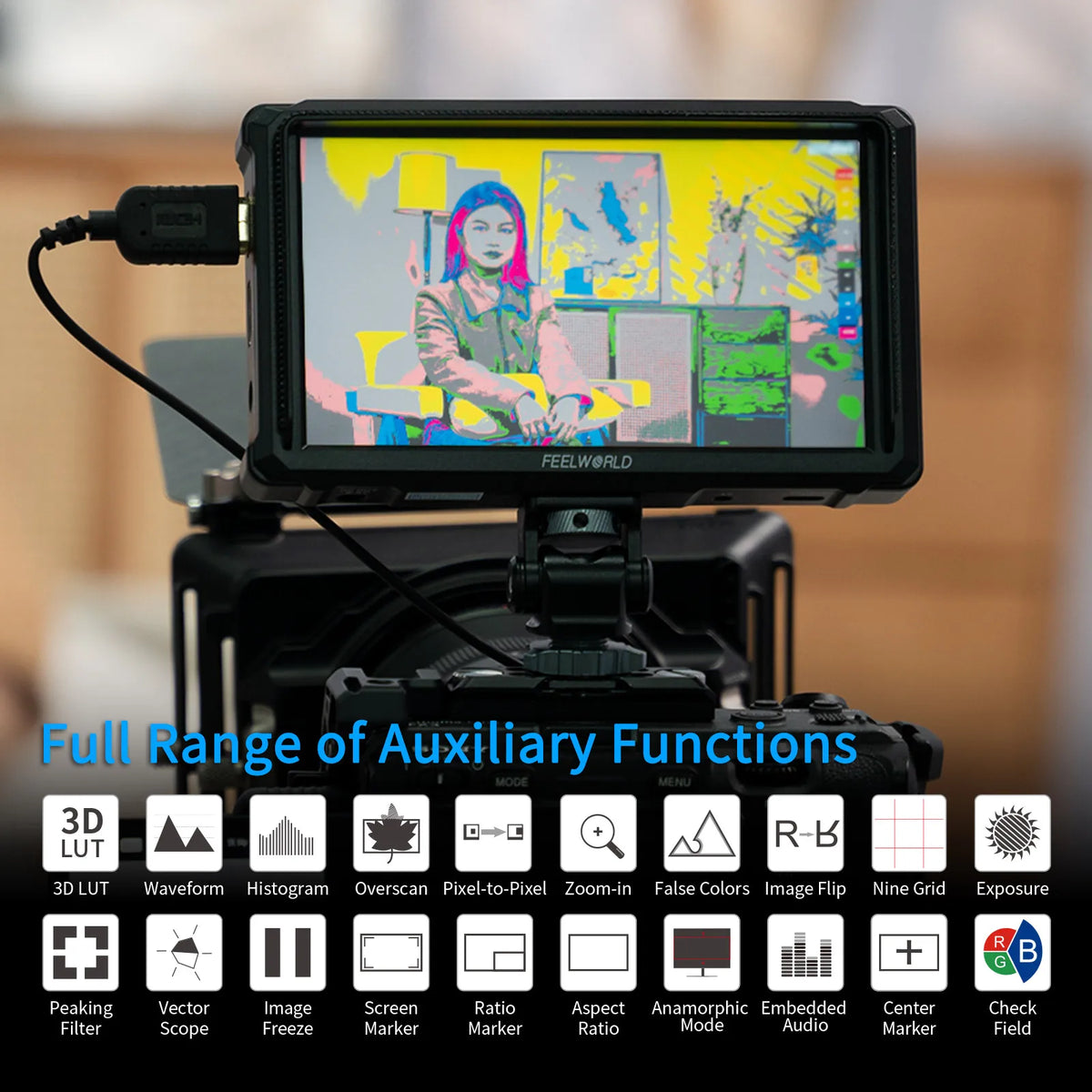

Full Range of Auxiliary Functions

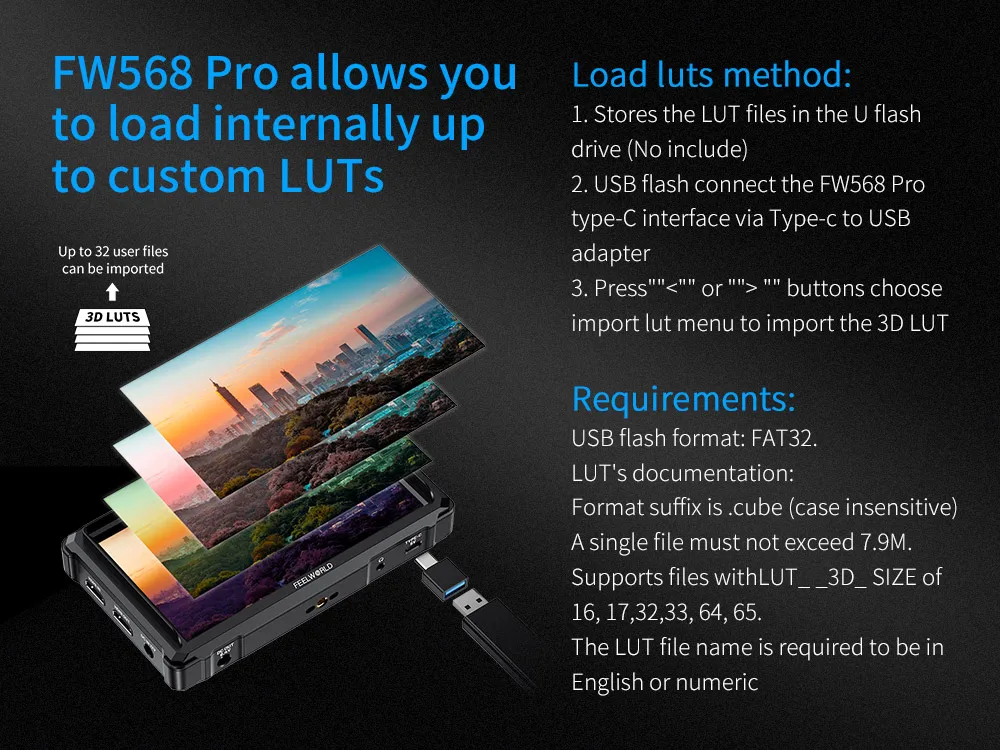

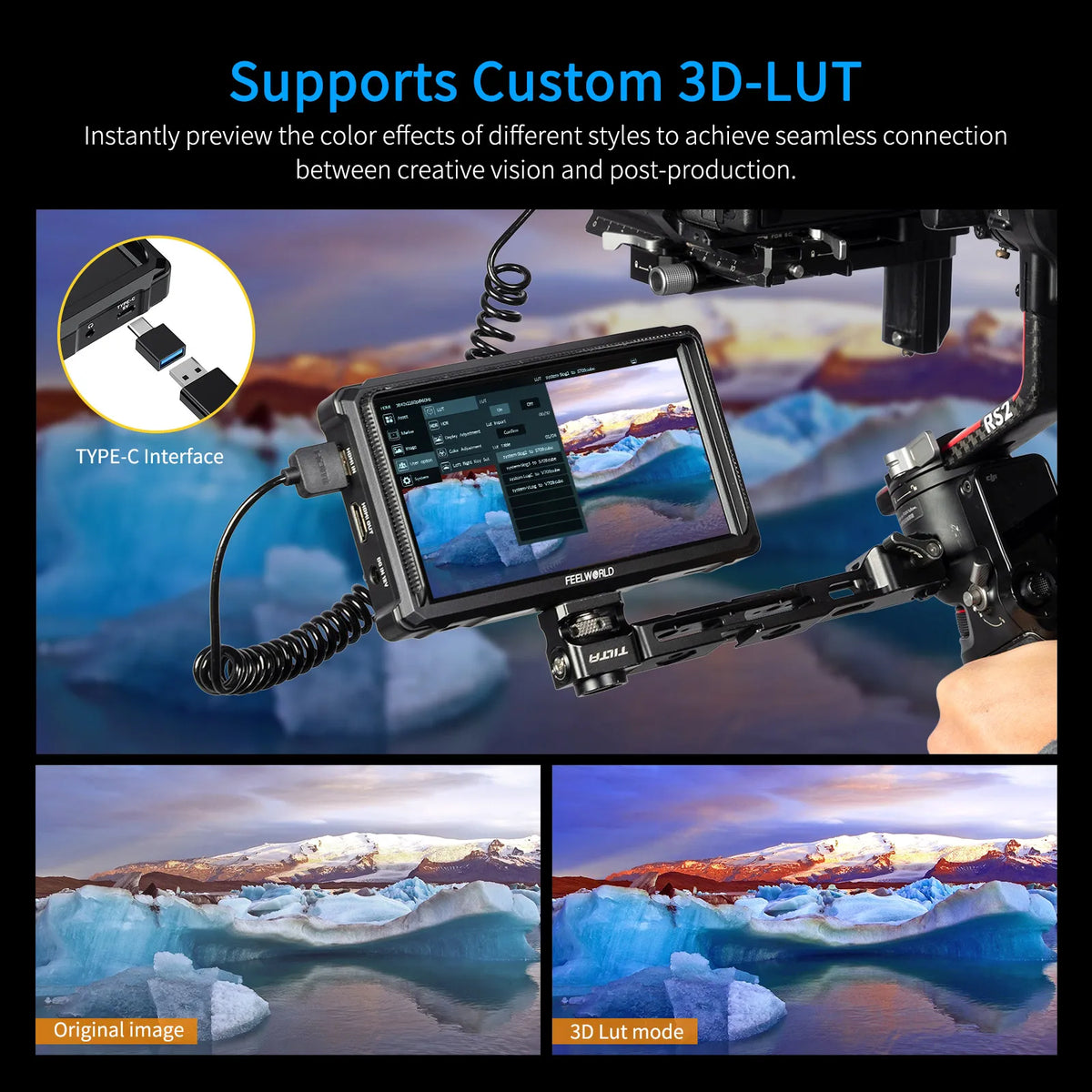

Supports Upload 32 custom LUTs

12 Languages Supporting

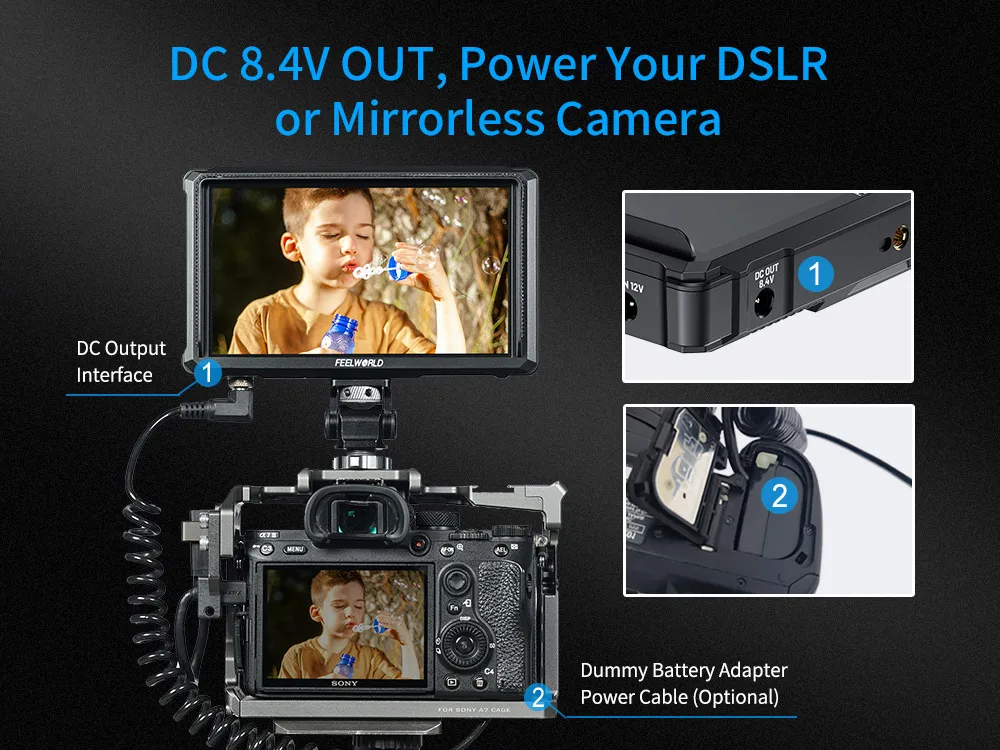

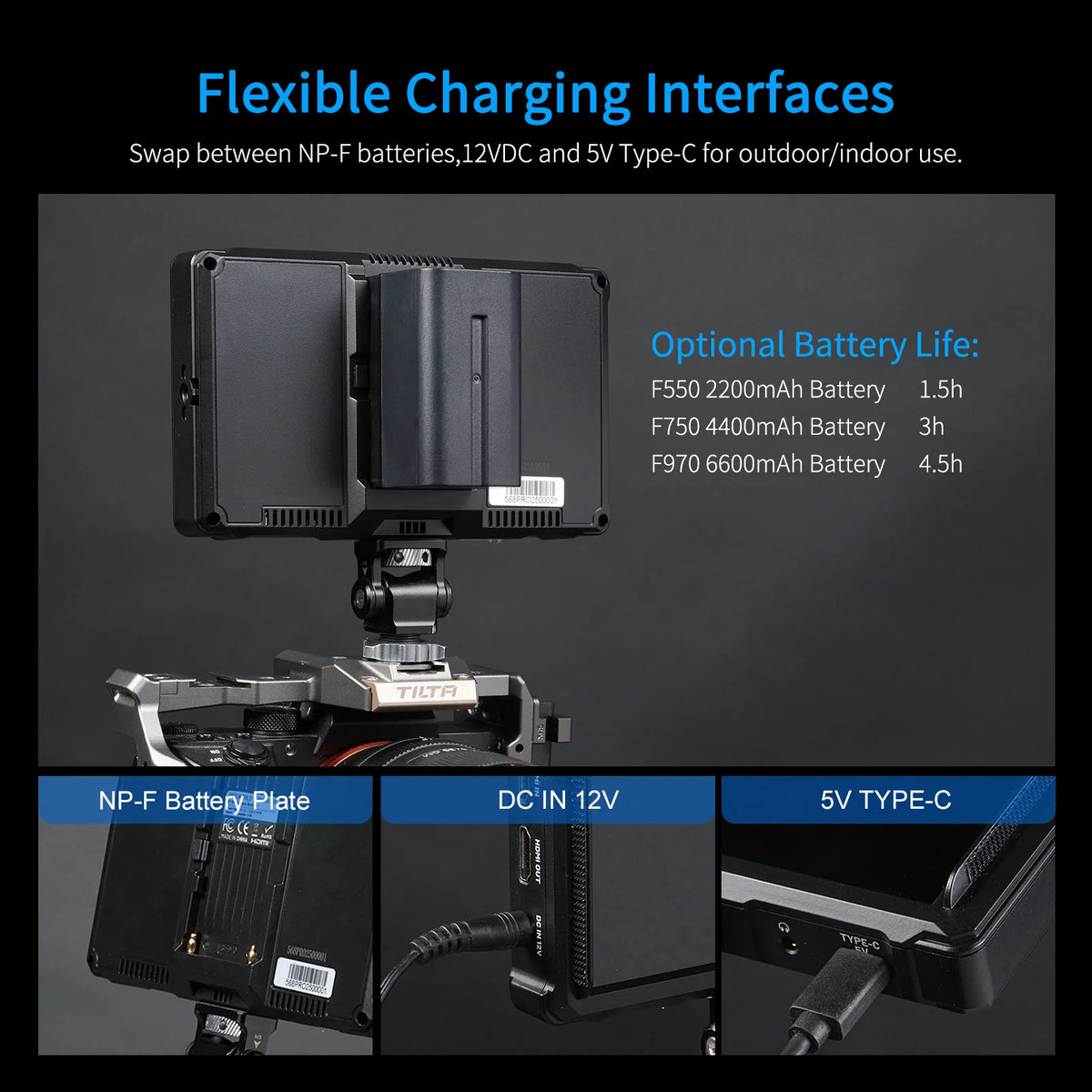

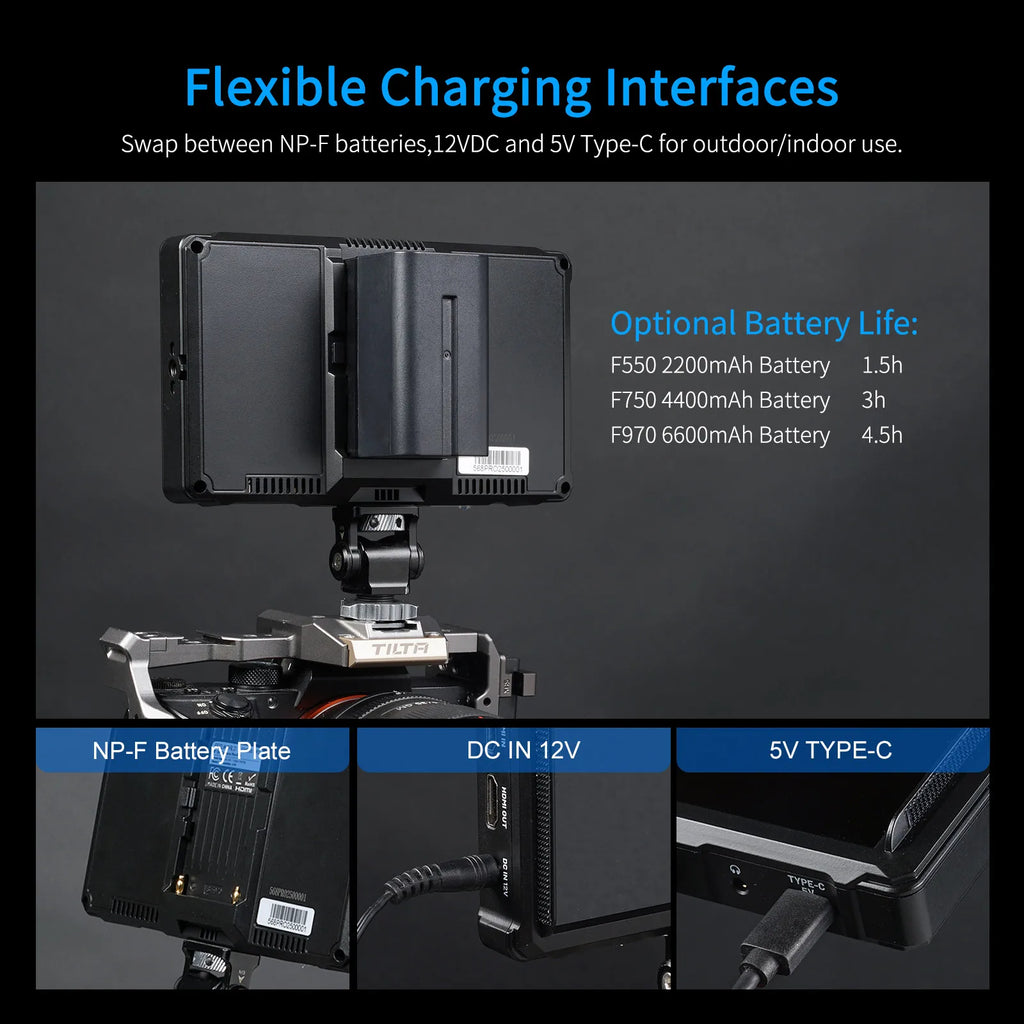

Multiple Power Supply, Long-lasting Power for Shooting

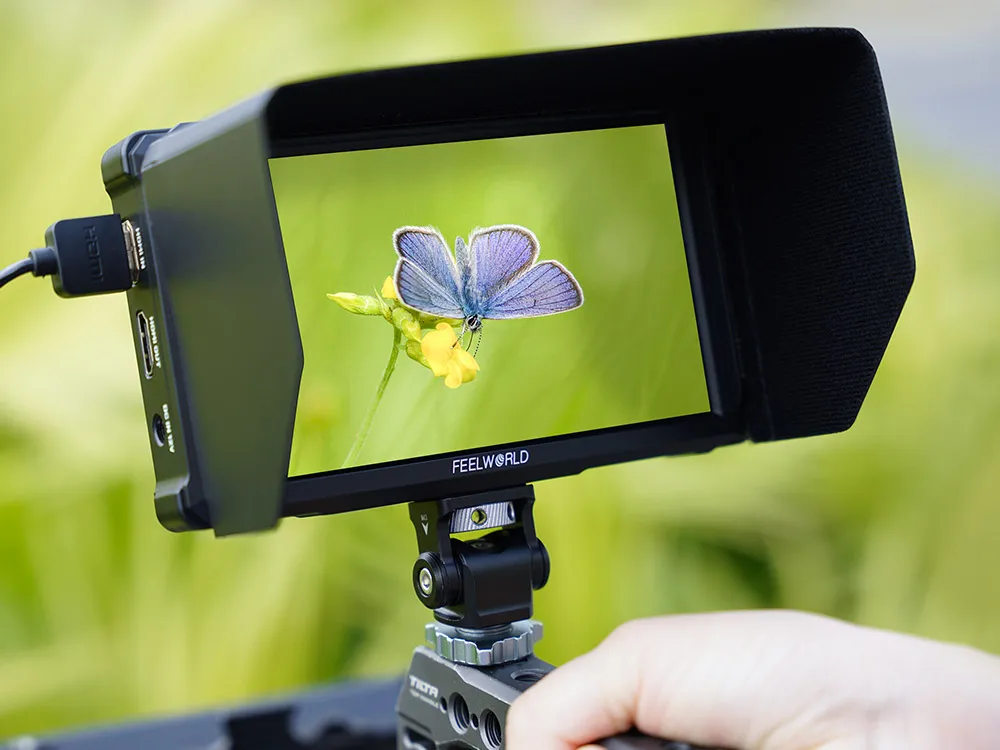

Portable Sun-hood
