New Type-C Mobile Thermal Imager -20~1000°C 32*32 Pixels Infrared Camera APP Control Thermal Camera for Android Mobile Phone

Write A Review

$61.28

SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Electronic: No

Feature 1: Thermal Camera

Feature 2: IR Camera

Feature 3: Thermal Imaging Sensor

Feature 4: Android Thermal Imager

High-concerned chemical: none

Model Number: Infrared Thermal Imager

Origin: Mainland China

Semi-finishedproduct: No

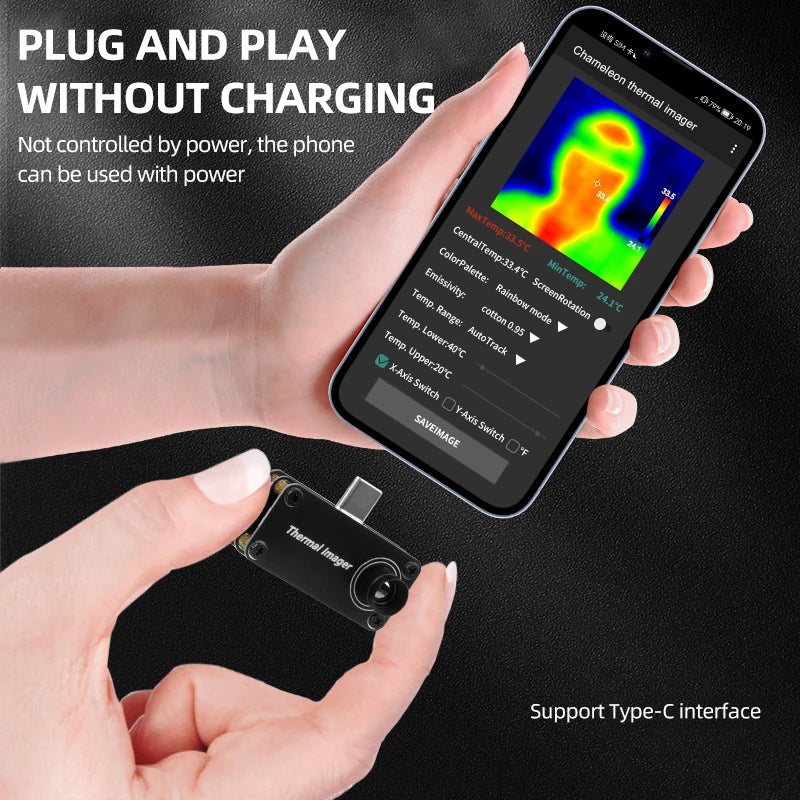

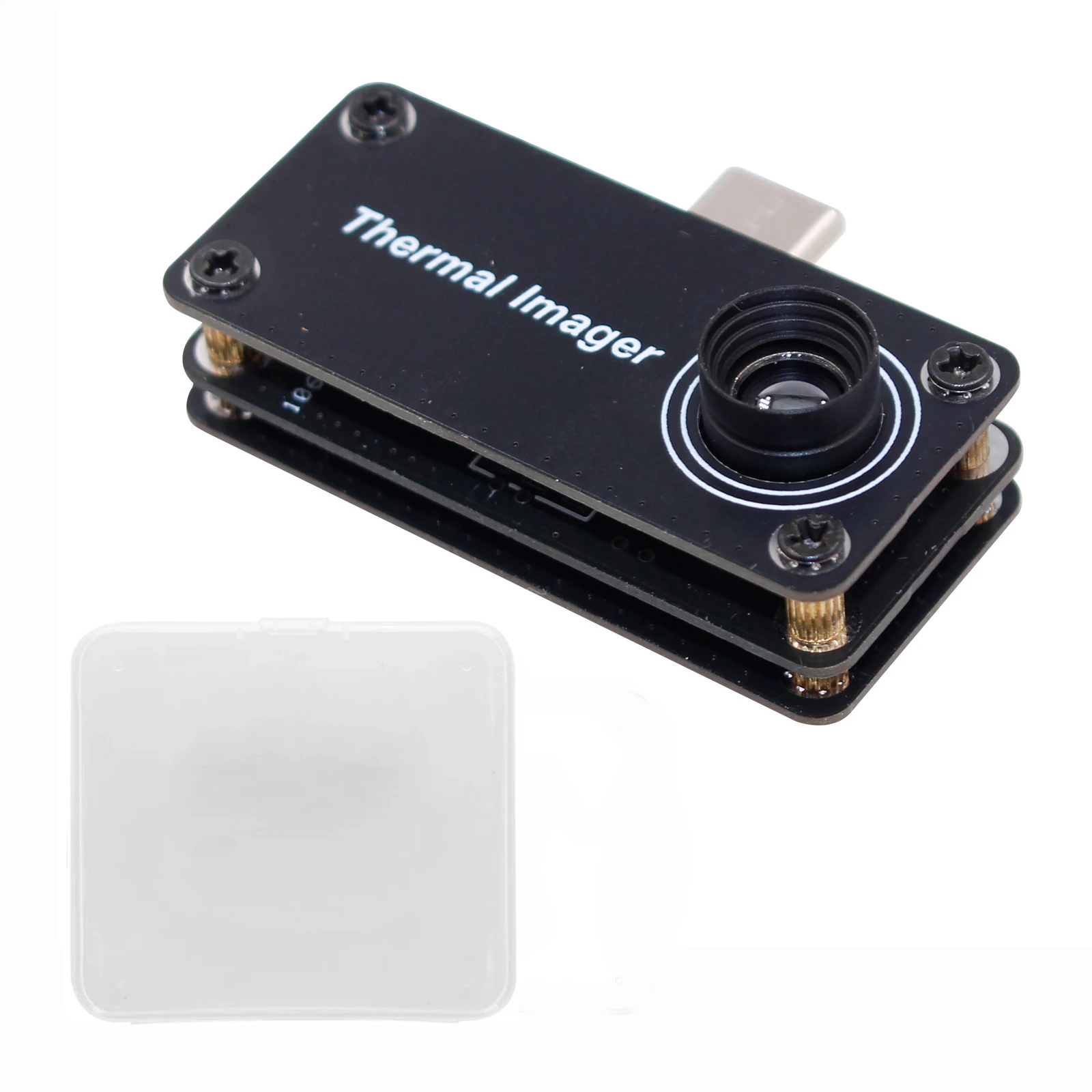

This product is a mobile phone infrared thermal imager that must be used with a dedicated mobile APP (currently supporting Android systems). It features a resolution of 32×32 and supports plug-and-play operation for excellent convenience. It is widely used in various industries and fields such as electronic device development, printed circuit board testing, thermal engineering construction, and non-contact temperature measurement.

Features:

1. **Language Settings**: In the menu at the top-right corner of the main interface, you can select the APP language. Two language options are available, and you can switch between Chinese and English according to your preference.

2. **MaxTemp, MinTemp, CentTemp**: These indicate the corresponding temperature values on the current measurement screen, representing the maximum temperature, minimum temperature, and center temperature respectively.

3. **LandRevert (Layout Reversal)**: Enables mobile screen layout reversal. This allows you to rotate and hold your phone so that the thermal imager is positioned at the top of the device. Note that some phone models require the auto-rotate screen function to be enabled.

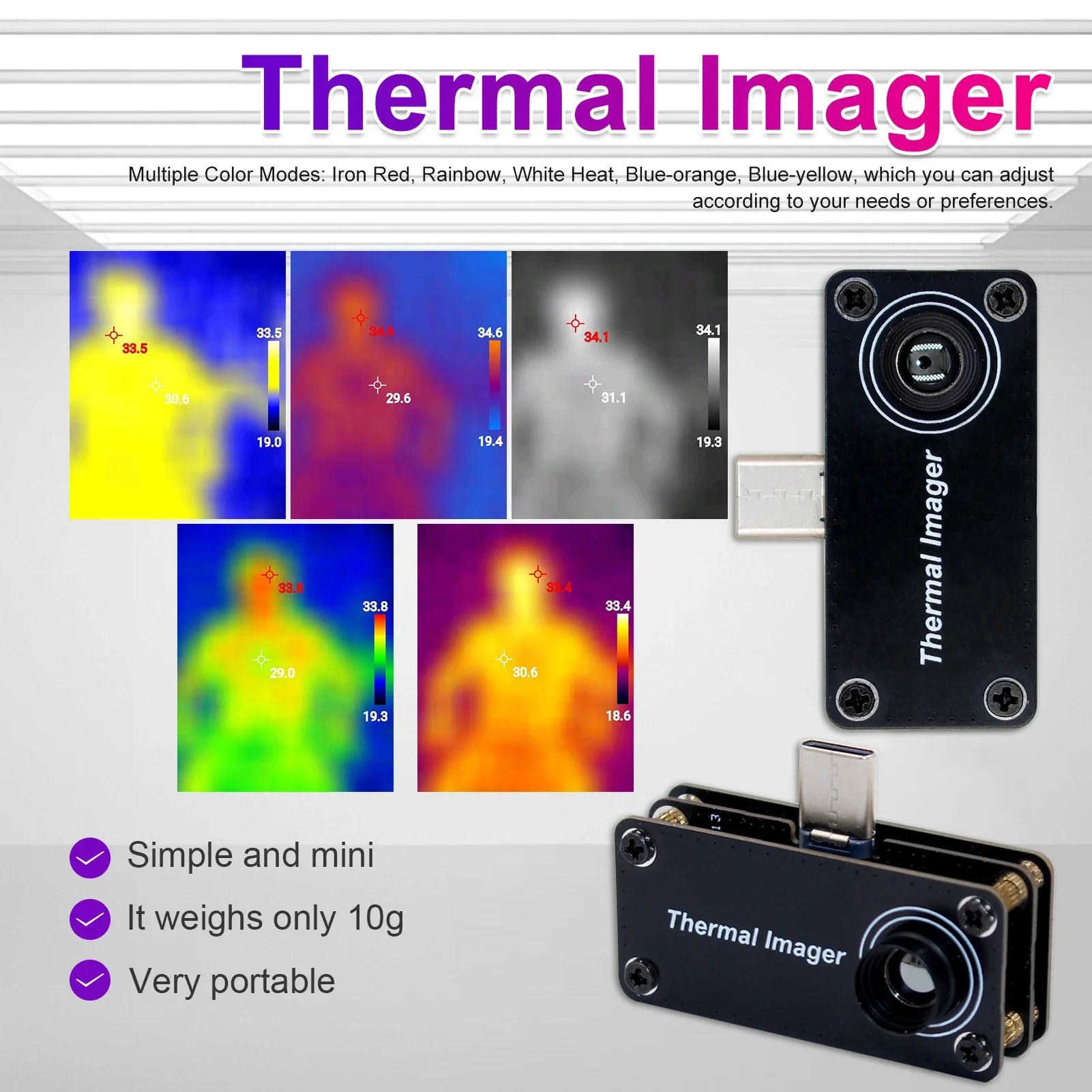

4. **ColorPalette (Multiple Color Modes)**: Includes Iron Red, Rainbow, White Hot, Blue-Orange, and Blue-Yellow. You can adjust the mode based on your needs or preferences.

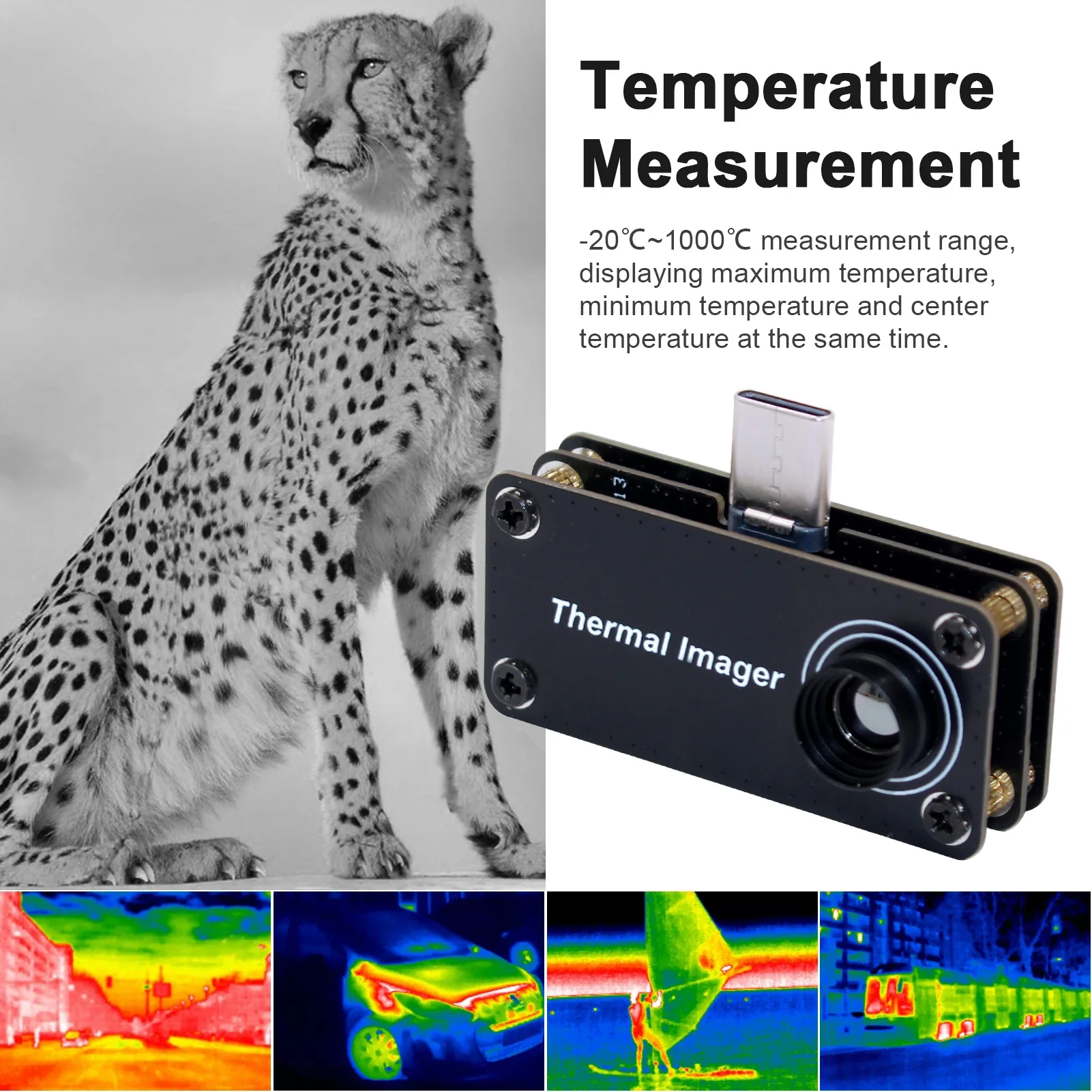

5. **PaletteScale (Temperature Range)**: Measuring range of -20℃ to 1000℃. This setting controls whether the upper and lower temperature limits corresponding to the current color scheme automatically follow the screen’s temperature range or use manually configured values (PaletteUpper for upper limit and PaletteLower for lower limit).

6. **Emissivity Setting**: If you only need to view the surface temperature distribution of an object without precise absolute temperature measurement, the default emissivity can be used. For more accurate temperature measurement, please refer to the emissivity value of the material the object is made of.

7. **Compact Size**: Simple and mini design, weighing only 10 grams, making it lightweight and highly portable.

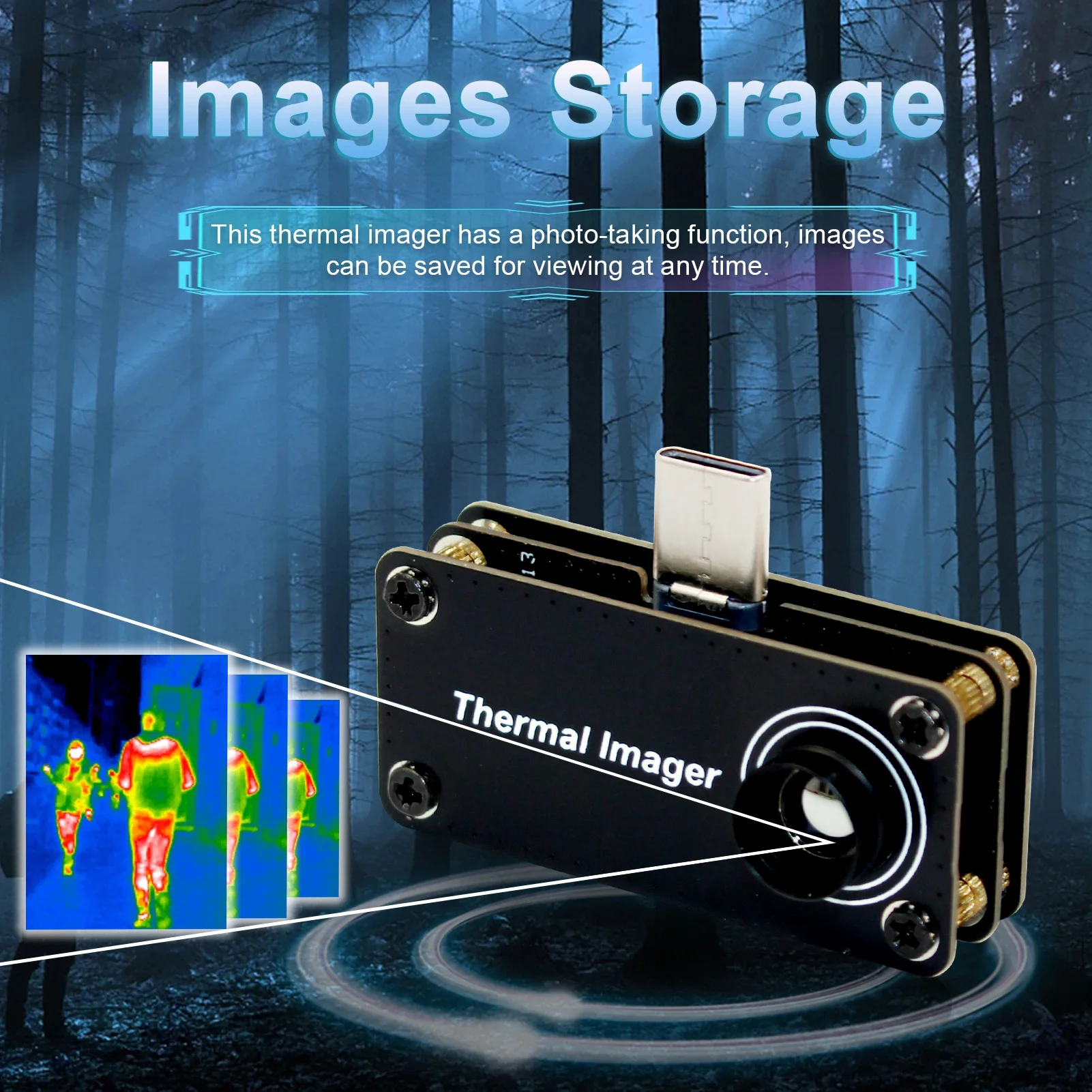

8. **Image Storage**: The thermal imager supports photo capture, allowing images to be saved for later viewing at any time.

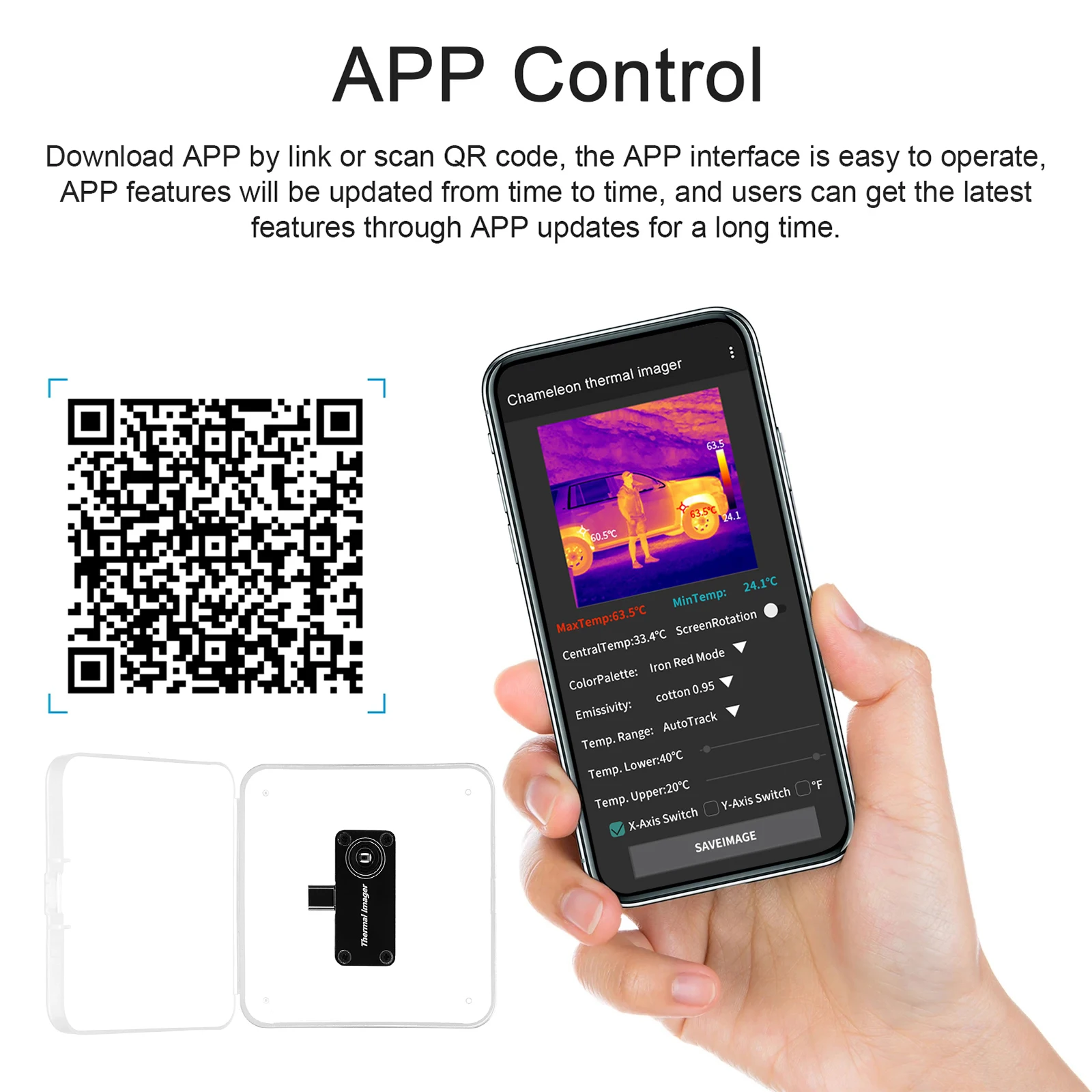

9. **APP Control**: The APP can be downloaded via a link or by scanning a QR code, with an easy-to-use interface.

10. **Android Compatibility**: Supports Android 8.0 to 12 operating systems.

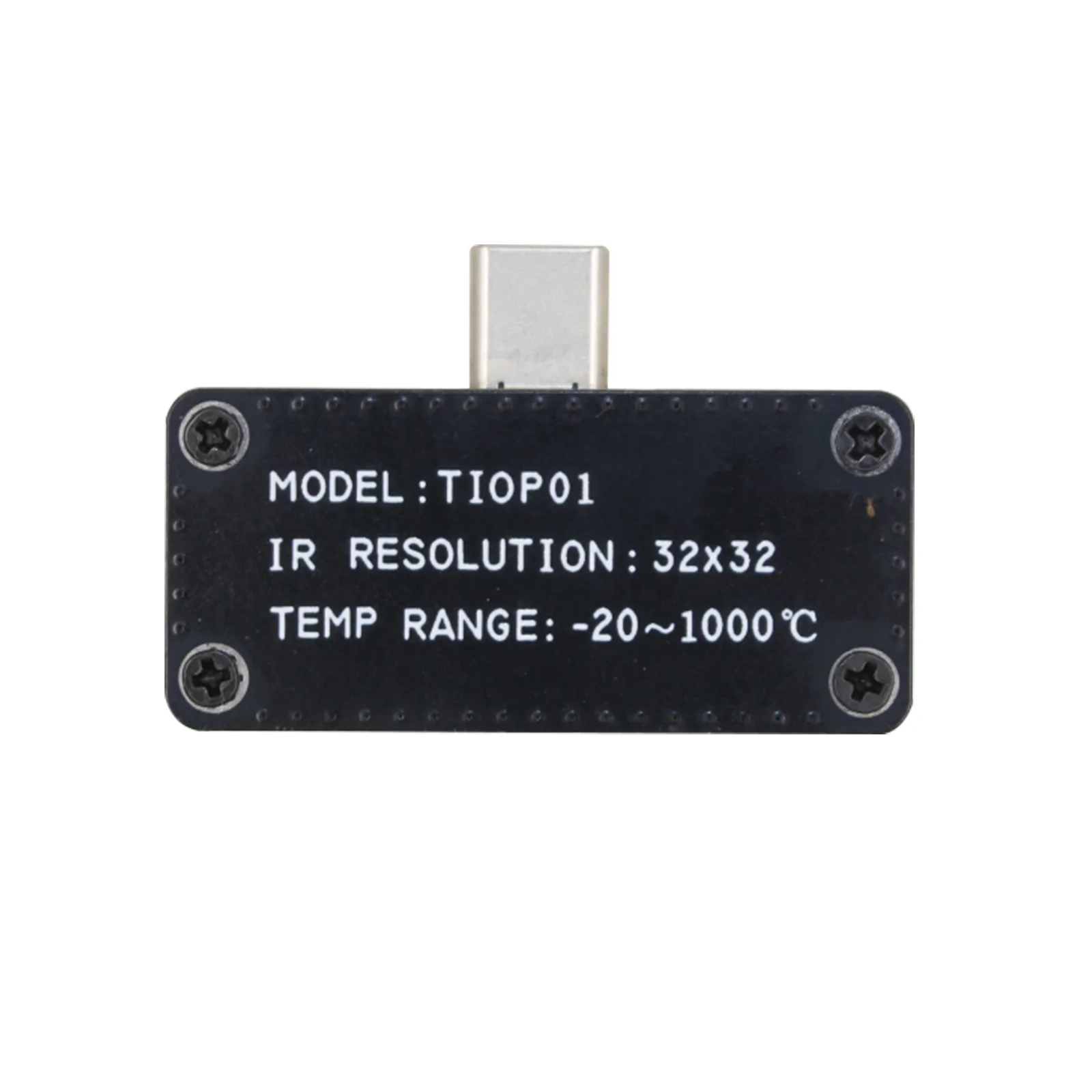

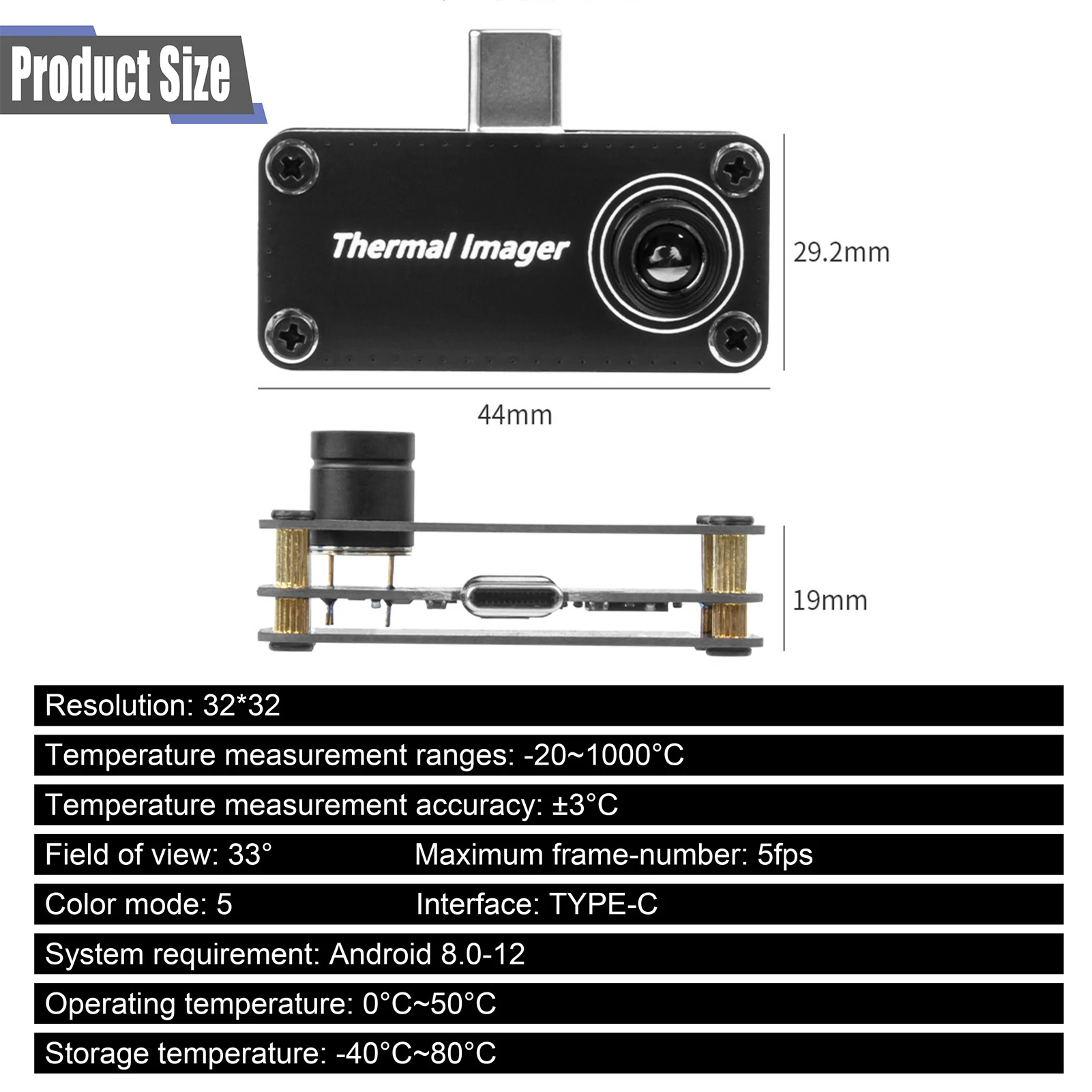

Specifications:

- Weight: 10g

- Dimensions: 44 × 29.2 × 19mm

- Resolution: 32 × 32

- Interface: Type-C

- Supported System: Android 8.0–12 (supports saving images to local storage)

- Field of View: 33°

- Maximum Frame Rate: 5FPS
